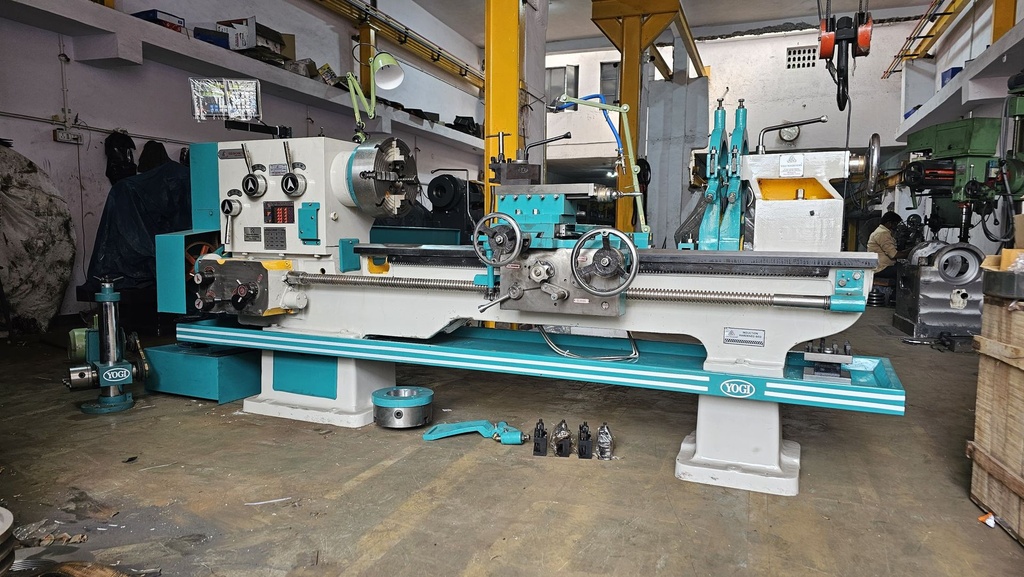

9 Feet All Geared Heavy Duty Lathe Machine

  • Center Height: 12 Inch
  • Spindle Bore: 80 mm
  • Bed Width: 15 Inch
  • Distance Between Centers: 1600 mm
  • Swing Over Bed: 550 mm
  • Swing Over Cross Slide: 350 mm
  • Swing in Gap: 850 mm
  • Spindle Speed Range: 30–1060 RPM
  • Spindle Nose: A2-8
  • Chuck: 16” 4-Jaw Independent Dog Chuck
  • Motor: 3 HP, 3 Phase

₹ 4,37,500.00 ₹ 4,37,500.00
₹ 4,37,500.00

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
Tax & Transportation: 18% GST Tax & Transportation Charges will be Extra  as Applicable
Delivery Time: Available In Ready Stock

Contact Now for the Best Offer on High-Quality Machines! Call : +91-9624080303

Share

Social Media

9 Feet All Geared Heavy Duty Lathe Machine – YHD A9 | 12” Center Height, 80mm Bore, 3HP Motor

Enhance your workshop's precision and productivity with our 9 Feet All Geared Heavy Duty Lathe Machine, designed for industrial-grade turning and machining jobs. Built with a 12-inch center height, 1600 mm between centers, and 80 mm spindle bore, this machine handles medium to heavy components with ease.

Equipped with a rigid all-geared headstock and Full Norton Gear Box (Single Shaft), this lathe offers 30–1060 RPM spindle speeds and rapid threading setup using knob controls—no gear changes required. The A2-8 spindle nose ensures solid chuck fitting for demanding jobs.

Built to Last:

  • Induction Hardened Bedways (Up to 64 HRC / 423 BHN)
  • Hardened Headstock & Tailstock Spindle
  • 63 mm MT-4 Tailstock Spindle
  • SGI Half Nut and GM Nuts for long service life
  • Heavy-Duty Components: Tool-post (6x6”), Compound (6x15”), Cross Slide (10x20”)
  • 45 mm Dia Lead Screw (2 TPI)
  • Carriage Fitted with Turcite-Sheet for smooth operation
  • Mounted on Heavy-Duty Machine Legs for stability

Standard Accessories Included:

  • Steady Rest (3 Pin Guide)
  • Chuck Plate
  • Thread Dial Indicator Gear
  • Square Tool Post with Key
  • Chip Trays (for Carriage & Surface)
  • Change Gear Set
  • Motor Pulley

Whether you're machining shafts, bushings, flanges, or heavy cylindrical parts, this lathe machine is your reliable partner for precision and durability.

✅ Manufactured by YOGI MACHINE TOOLS – India's Trusted Lathe Manufacturer
