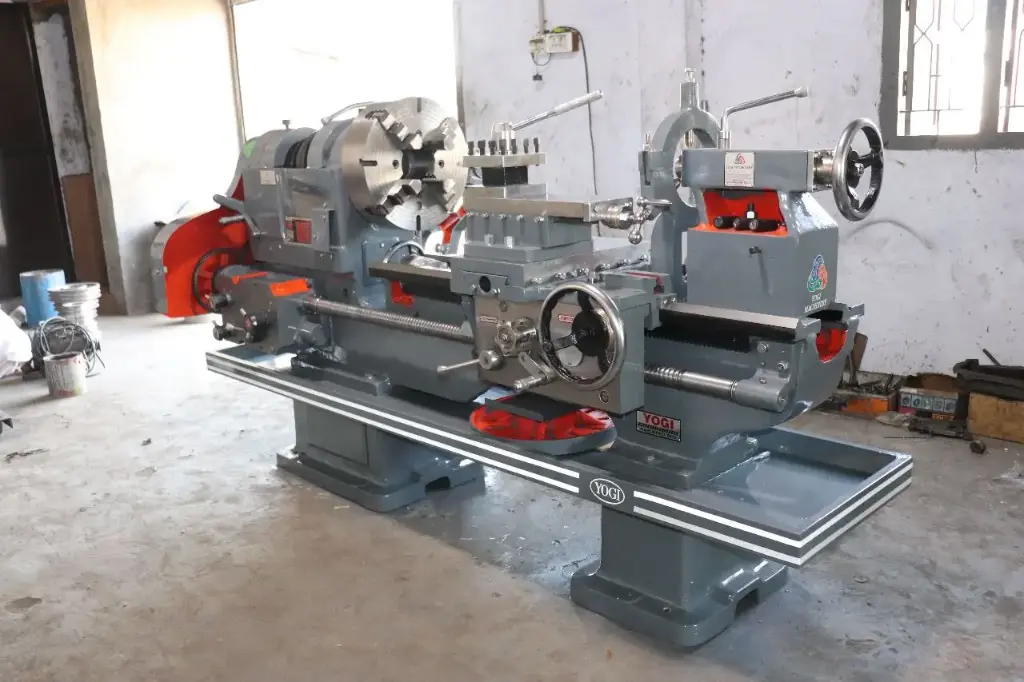

7 Feet Heavy Duty Lathe Machine

7 Feet Heavy Duty Lathe Machine – 12" Centre Height | 80mm Bore | 3 HP Motor | Premium Build Quality

Upgrade your workshop with our 7 Feet Heavy Duty Lathe Machine, engineered for precision, durability, and high performance. Ideal for medium to heavy-duty turning operations, this machine is built using robust components and advanced features for long-lasting service and accurate machining.

🔧 Key Specifications:

• Centre Height: 12 Inches
• Spindle Bore: 80 mm
• Bed Width: 13 Inches
• Distance Between Centers: 1000 mm
• Swing Over Cross Slide: 350 mm
• Swing Over Bed: 550 mm
• Swing in Gap: 850 mm

⚙️ Engineering Features:

• V-Belt Drive with Taper Roller Bearing & Cone Pulley Type System
• Induction Hardened Bed-Way for enhanced wear resistance
• Hardened Headstock & Tailstock Spindles
• SGI Half Nut for Lead Screw & GM Nuts for Compound/Surface/Tailstock
• Tailstock Spindle Dia: 58 mm (MT-4 Taper)
• Heavy-Duty Machine Legs for stability
• Turcite Coated Saddle (Carriage) for friction-free smooth operation

🔩 Standard Dimensions:

• Tool Post: 5x5 Inch
• Compound Slide: 5x11 Inch
• Cross Slide: 8x18 Inch
• Lead Screw Diameter: 38 mm, 4 TPI
• Cast Iron Headstock Gears for quiet, powerful rotation
• Full Norton Gear Box (Single Shaft)

🔌 Power & Chuck:

• Motor: 3 HP, 3 Phase, 1440 RPM
• Chuck: 14 Inch 4-Jaw Independent Dog Chuck

🧰 Included Standard Accessories:

• Steady Rest with 3-Pin Guide
• Chuck Plate
• Thread Dial Indicator Gear
• Square Tool Post with Key
• Wheel Pulley
• Chip Tray (2 Slots: Carriage & Surface)
• Change Gear Set
• Motor Pulley
• Motor Belt Side Cover

Built with precision and heavy-duty components, this lathe is perfect for workshops, fabrication units, and general engineering needs. Ready to perform, right out of the box.

Brand: YOGI MACHINE TOOLS

Model: YHD-7

Made in India | Trusted by Engineers Nationwide
