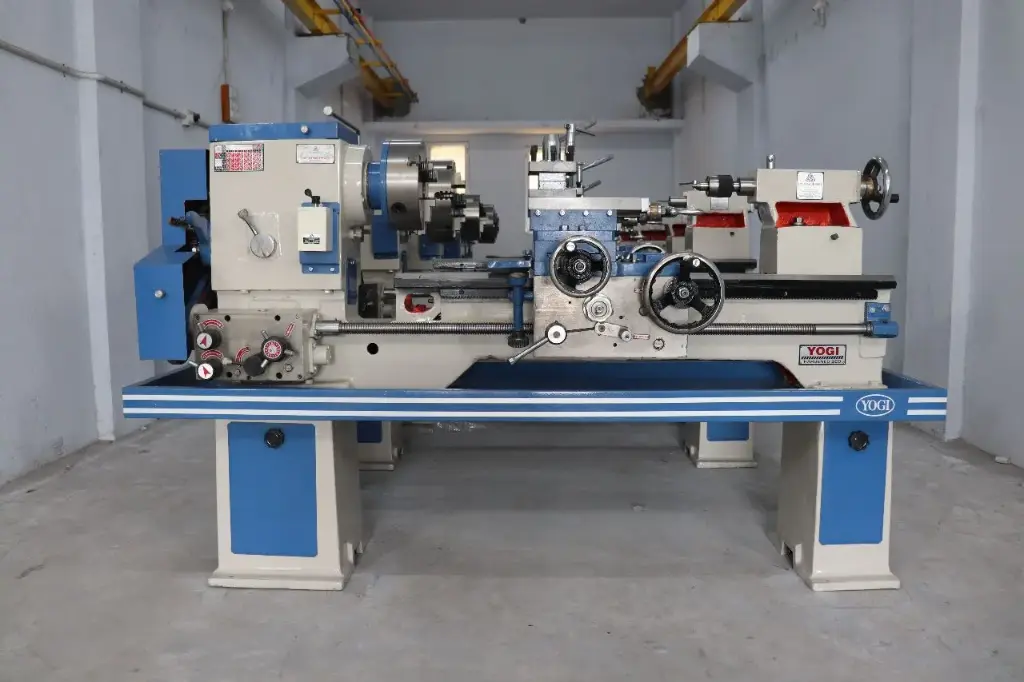

6 Feet Medium Duty Lathe Machine

6 Feet Medium Duty Lathe Machine – Model YMD-D6

Precision | Performance | Durability

Ideal for workshops, job shops, and tool rooms, the YMD-D6 combines compact size with robust performance for precision metal turning.

✅ Key Specifications:

• Height of Centre: 10 Inches
• Spindle Bore: 80 mm
• Distance Between Centres: 950 mm
• Swing Over Cross Slide: 250 mm
• Swing Over Bed: 450 mm
• Swing in Gap: 750 mm
• Bed Width: 11 Inches
• Tailstock Spindle: MT-4
• Drive Type: V-Belt with Cone Pulley & Taper Roller Bearings

⚙️ Mechanical Features:

• Induction Hardened Bed-Way
• Hardened Headstock & Tailstock Spindles
• SGI Half Nut for Lead Screw
• GM Nuts for Compound, Surface & Tailstock Screws
• Heavy Machine Leg
• Carriage Fitted with High-Grade Turcite Sheet
• Full Norton Gear Box (Hardened Gears, Knob Type)
• 10” 3-Jaw Self-Centering True Chuck (Grade 1 with Backplate Fitting)
• 2 HP, 1440 RPM, 3 Phase Motor with R/F Switch & V-Belts (IE2 High Efficiency | 25% Power Saver)

🛠️ Available Models & Price:

🔹 Standard Model – ₹1,75,000/-

• Tool Post: 4x4”
• Compound: 4x9”
• Cross Slide: 7x15”
• Cast Iron Headstock Gears
• Turbo Make Taper Roller Bearing

🔹 Deluxe Model – ₹1,80,000/-

• Heavy Tool Post: 5x5”
• Heavy Compound: 5x10.5”
• Heavy Cross Slide: 8x16”
• Cast Iron Headstock Gears
• Turbo Make Taper Roller Bearing

🔹 Super Deluxe – ₹1,84,000/-

• Heavy Tool Post: 5x5”
• Heavy Compound: 5x10.5”
• Heavy Cross Slide: 8x16”
• MS Gear in Headstock
• Turbo Make Taper Roller Bearing

🔹 Supreme Deluxe – ₹1,90,000/-

• Heavy Tool Post: 5x5”
• Heavy Compound: 5x10.5”
• Heavy Cross Slide: 8x16”
• MS Gear in Headstock
• Timken Make Taper Roller Bearing

📦 Why Choose YMD-D6?

• Compact, medium-duty machine with premium features
• Choice of 4 models to suit every budget and precision need
• High-performance, power-efficient motor with trusted components
• Made in India by YOGI MACHINE TOOLS – trusted for quality & service
